Name: AMG570-2GBT-4GAT-2G-3S-P190-LV ndustrial 11-Port Managed PoE Switch, (6) 1GBT POE (2 x 90+4 x 30W), (2) 1GBT, (3) 1/2,5GFX SFP, 190W at 18V
Brand: AMG Systems
SKU: 572GBT4GAT2G3SP19L

AMG570-2GBT-4GAT-2G-3S-P190-LV ndustrial 11-Port Managed PoE Switch, (6) 1GBT POE (2 x 90+4 x 30W), (2) 1GBT, (3) 1/2,5GFX SFP, 190W at 18V

Brand: AMG Systems

ADI #:572GBT4GAT2G3SP19L Model #: AMG570-2GBT-4GAT-2G-3S-P190-LV Name: AMG570-2GBT-4GAT-2G-3S-P190-LV ndustrial 11-Port Managed PoE Switch, (6) 1GBT POE (2 x 90+4 x 30W), (2) 1GBT, (3) 1/2,5GFX SFP, 190W at 18V

Innovative thermally efficient housing ensures high levels of device reliability under full load
Maintains performance in extreme conditions -40°C to 75°C temperature
DIN Rail or wall mountable, quick to install and remove for maintenance

Product Overview

General Information

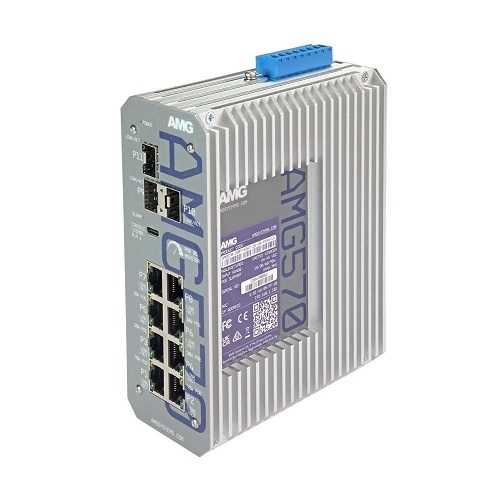

AMG570 Series layer 2 managed industrial Ethernet switches are designed in a thermally efficient DIN rail or wall mount housing and have 8 Gigabit Ethernet RJ45 ports with an additional 3 multi-rate SFP ports that support 100Mb, 1Gb and 2.5Gb for high-speed data uplink into core networks, providing application and site flexibility. Available as a non-PoE model as well as multiple PoE models for IEEE802.3at 30W and / or IEEE802.3bt 60/90W they are suitable for powering the latest high-powered PoE devices over a wide industrial operating temperature range. The LV models feature a fully isolated 9-36VDC or 20-60VDC booster circuit with a regulated 53VDC output to supply PoE from a low-voltage power input. The AMG570 series supports a wide range of management functions as well as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Media Redundancy Protocol (MRP) and Ethernet Ring Protection Switching (ERPS) for network redundancy. IGMP functionality is supported to handle the multicast traffic commonly used in IP CCTV deployments.

Main Features

Innovative thermally efficient housing ensures high levels of device reliability under full load
Maintains performance in extreme conditions -40°C to 75°C temperature
DIN Rail or wall mountable, quick to install and remove for maintenance
Compliant with all IEEE 802.3 speeds (i/u/ab/z)
Triple Speed SFP ports (100MB, 1GB, 2.5GB)
Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3
IEEE 802.1x Port security enabled
Integrated low voltage DC-DC PoE booster
Supports 10K bytes jumbo frames
Supports 15W, 30W, 60W and 90W PoE

Information

Category : Data Comm & Networking, Hubs, Routers & Switches, Network Switches, Networking Devices, Products, Video Surveillance
