General Information

ADI Part Number

02635-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02635-001

Product Model

P3738-PLE

Product Name

AXIS P3738-PLE

Product Series

P37

Product Type

Fixed dome cameras

weight

2 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

32MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/1.9

Maximum Frame Rate

15 fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.5x

Video Formats

H.264, H.265, MJPEG, MPEG-4

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

15 m

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Illumination

0 lux

Maximum Video Resolution

3840 x 2160

Number of Sensors

4

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-30°C

Operating Humidity

1

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/16000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.18-8.12mm

Lens Included

Yes

Maximum Focal Length

8.10 mm

Minimum Aperture

f/3.2

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Impact Resistant

Form Factor

Dome

Height

91.4 mm

Product Information

Diameter

254 mm

Mount Type

Bracket Mount, Conduit Mount, Junction Box Mount

Storage

Recording Formats

4K

Storage Type

Cloud, Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364

Environmentally Friendly

Yes

Features

3D Noise Reduction, Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Privacy Protection, Vehicle Detection, White Balance

Impact Protection Rating

IK09

Indoor/Outdoor

Outdoor

Package Contents

1 X P3738-PLE Panoramic Camera 4x 4K Multidirectional With Deep Learning
1 X installation guide
1 X connector guard
1 X cable gaskets

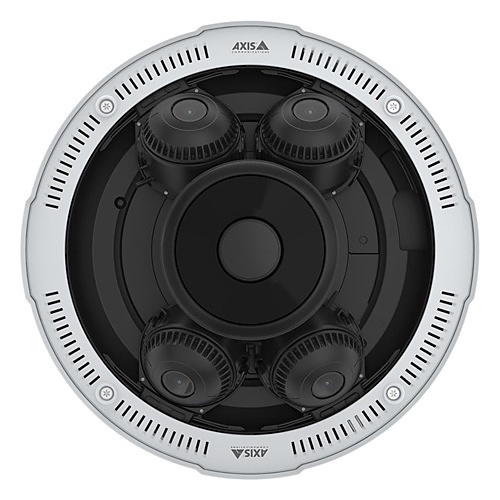

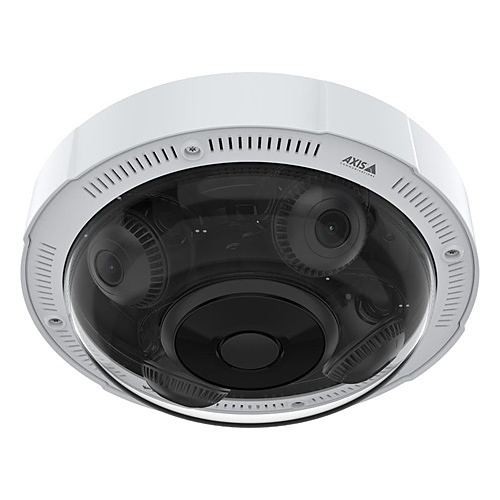

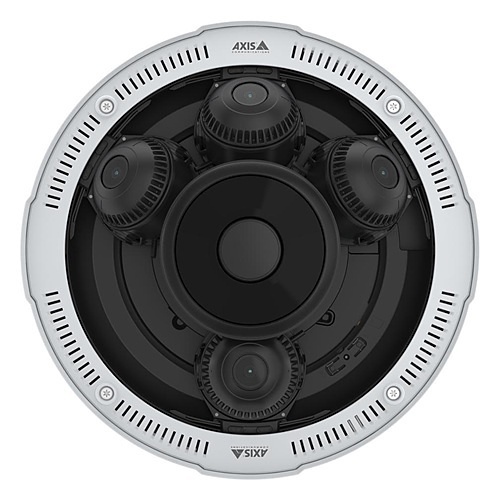

AXIS P3738-PLE 4x4K Multidirectional Panoramic IP Camera, 3.2-8.1mm Lens, White
