Dahua DHI-TPC-BF5441-TB13F6-BM-J-S2 Thermography Series 4MP Hybrid Bullet Thermal Camera

Brand: Dahua Technology
ADI #:TBF5441TB13BMJS2 Model #: DHI-TPC-BF5441-TB13F6-BM-J-S2  Name: Dahua DHI-TPC-BF5441-TB13F6-BM-J-S2 Thermography Series 4MP Hybrid Bullet Thermal Camera
  • 4MP Hybrid Bullet Thermal Camera
  • 400x300 Thermal Sensor, 13mm Lens
  • 4MP Visual Camera, 6mm Lens

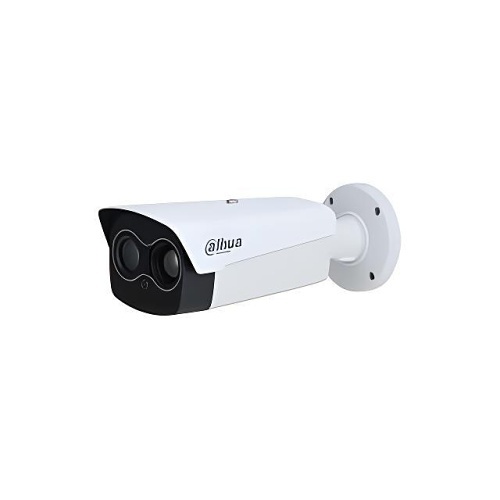

Image of TBF5441TB13BMJS2

Product Overview

General Information

Dahua, Thermal Thermography series Hybrid bullet thermal camera and visual camera, thermal sensor 400 x 300 pixels, 13mm lens, VOx Uncooled thermal sensor with temperature measurement - visual camera 4MP, 6mm lens, white light up to 80m and white light strobe, IP67, ONVIF compliant PoE / 12V DC,with junction box. Dual stream, H.265, H.264M, H.264H, H.264B compression thermal video stream 1280x960 (default) at 25fps, visual camera 4MP at 25fps, ONVIF compatible, IVS, tripwire, intrusion and multiple types of intelligence analysis functions such as calling,smoking and fire. 3D DNR, AGC, alarm I/O , audio I/O,support build-in speaker , slot for Micro SD card, operating temp, -30 C till +70 C, temperature measurement (low -20° /+150° of High 0°/+550°), 12Vdc/ePoE.

Main Features
  • 4MP Hybrid Bullet Thermal Camera
  • 400x300 Thermal Sensor, 13mm Lens
  • 4MP Visual Camera, 6mm Lens
  • White Light Up to 80m, Strobe Feature
  • IP67 Rated, ONVIF Compliant
  • Dual Stream, H.265/H.264 Compression
  • Temperature Measurement: -20°/+150° to 0°/+550°
  • Supports Micro SD Card, Built-in Speaker
  • Operating Temp: -30°C to +70°C
  • Intelligent Analysis: Tripwire, Intrusion
Information
Category : IP Cameras, Products, Thermal Imaging Cameras, Video Surveillance

Specifications

General Information

ADI Part Number
TBF5441TB13BMJS2
Brand Name
Dahua Technology
Manufacturer Part Number
DHI-TPC-BF5441-TB13F6-BM-J-S2
Product Series
Termography

Technical Information

Effective Camera Resolution
4MP
Maximum Frame Rate
25 fps

Certifications

Ingress Protection Rating
IP67
RoHS Compliant
Compliant

Display & Graphics

Thermal Image Sensor Type
VOx Uncooled Thermal Sensor

Environmental Conditions

Maximum Operating Temperature
70°C
Minimum Operating Temperature
-30°C

Lens

Focal Length
13 mm, 6
Lens Included
Yes
Maximum Focal Length
6 mm
Maximum Thermal Focal Length
13 mm

Physical Characteristics

Form Factor
Bullet

Power Description

Input Voltage
12V DC

Storage

Storage Type
Memory Card

Video

Thermal Video Resolution
400 x 300
