Dantech DA340-IP66 Visual Indicator, Weather-resistant

Brand: Dantech Electronic Engineering
ADI #:DA340-IP66 Model #: DA340/IP  Name: Dantech DA340-IP66 Visual Indicator, Weather-resistant
  • Weather-resistant IP66 rated enclosure
  • Trigger LEDs with 5V less or equal to 30VDC inputs
  • 10.5V Less than or equal to 14VDC-powered

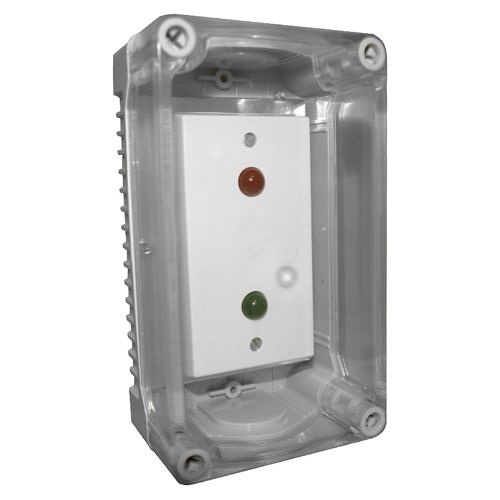

Image of DA340-IP66

Product Overview

General Information

With independently switched 10mm jumbo LEDs this unit can clearly display red or green indications. With a low current input to switch each LED independently (less than 1 mA) and 12VDC operation, this unit is very versatile. Typical uses include remote indication of alarm system set / unset or electronic door status.

Main Features
  • Weather-resistant IP66 rated enclosure
  • Trigger LEDs with 5V less or equal to 30VDC inputs
  • 10.5V Less than or equal to 14VDC-powered
  • Current consumption 55 mA
  • Trigger LEDs independently
  • Lid tamper switch
Information
Category : Access Control, Alarm Control Panels & Keypads, Control Panel Modules, Intrusion, Power Products, Power Supplies, Products

Specifications

General Information

ADI Part Number
DA340-IP66
Brand Name
Dantech Electronic Engineering
Manufacturer
Dantech Electronic Engineering
Manufacturer Part Number
DA340/IP
Product Model
DA340/IP
Product Name
Status Indicating Station
Product Type
Status Indicating Station

Technical Information

Power Consumption
55mA

Physical Characteristics

Color
White
Color Details
  • RED: LED
  • Green: LED
Depth
25 mm
Form Factor
Enclosure
Height
110 mm
Weight (Approximate)
0.05 kg
Width
54 mm

Power Description

Input Voltage
14V DC

Miscellaneous

Environmental Certification
CE
Environmentally Friendly
Yes
Indoor/Outdoor
Indoor
