Hanwha XRN-6410RB2 X-Series 8K 64-Channel H.265 NVR, 400Mbps, Black

Brand: Hanwha Vision
ADI #:XRN-6410RB2 Model #: XRN-6410RB2/VEU  Name: Hanwha XRN-6410RB2 X-Series 8K 64-Channel H.265 NVR, 400Mbps, Black
  • Up to 64 channels, Supports up to 32MP camera resolution
  • 400 Mbps network camera recording
  • Support 4K video out on HDMI monitor
Hanwha XRN-6410RB2 Wisenet X Series, 32MP 64-Channel 400Mbps 8 SATA NVR

Product Overview

General Information

Hanwha's 8K NVR supports up to 64 channels at H265,H264, MJPEG CODECs. Featuring up to 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup) functions for reliability. 400 Mbps recording throughput with Dual-stream recording. 4K HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (plugin-free), AI search for Wisenet AI cameras, QR Code for easy mobile app connection. Intel CPU based NVR (NDAA compliant)

Main Features
  • Up to 64 channels, Supports up to 32MP camera resolution
  • 400 Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 8 internal HDDs
  • Support RAID 5/6
  • ARB & failover(N+1), dynamic event, AI metadata search support
Information
Category : NVRs, Products, Recording Devices, Video Surveillance
EAN Code : 8801089197115

Specifications

General Information

ADI Part Number
XRN-6410RB2
Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Manufacturer Part Number
XRN-6410RB2
Product Line
Wisenet
Product Model
XRN-6410RB2
Product Name
64CH 8K 400Mbps H.265 NVR
Product Series
X series
Product Type
NVRs

Technical Information

Connectivity Technology
Wired
Effective Camera Resolution
32MP
HD Recording
Yes
Maximum Frame Rate
960 fps
Power Consumption
160W
Storage Capacity
64TB
Total Number of Channels
64

Certifications

NDAA Compliant
Yes
RoHS Compliant
Compliant
TAA Compliant
No

Interfaces/Ports

HDMI
Yes
Total Number of Audio Out Ports
1
USB
Yes

Network & Communication

Ethernet
Yes

Physical Characteristics

Color
Black
Depth
434.9 mm
Height
86 mm
Weight (Approximate)
9.10 kg
Width
438 mm

Storage

Hard Drive Capacity
64TB

Video

Maximum Resolution
32MP

Similar Products

Hanwha SBV-136BW/VEX Waterproof Back Box with Knockouts, White

Category: Junction Boxes   Brand: Hanwha Vision
Hanwha Techwin SBV-136BW Mounting Box for Network Camera - White

Hanwha QNV-7082R Q Series, 4MP IP Dome Camera, 3.2-10mm Motorized Varifocal Lens, IR 30M, IP66, White

Category: Dome Cameras   Brand: Hanwha Vision
Wisenet QNV-7082R 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome

Hanwha HCV-6070RP/EX HD Plus Series, 2MP WDR HDoC Dome Camera, 3.2-10mm Motorized Lens, IR 30M, IP66, White

Category: Dome Cameras   Brand: Hanwha Vision
Wisenet HCV-6070R 2 Megapixel Indoor/Outdoor Full HD Surveillance Camera - Color - Dome

Hanwha SBV-120GW Junction Box Indoor & Outdoor use, White

Category: Junction Boxes   Brand: Hanwha Vision
Image of SBV-120GW

Hanwha PND-A6081RV P Series, WDR IP53 2MP 4.38-9.33mm Motorized Lens, IR 40M IP Dome Camera, White

Category: Dome Cameras   Brand: Hanwha Vision
Hanwha PND-A6081RV Wisenet P Series, WDR IP53 2MP 4.38-9.33mm Motorized Lens, IR 40M IP Dome Camera, White

Hanwha QNV-8010R Q Series, WDR IP66 5MP 2.8mm Fixed Lens, IR 20M IP Dome Camera, White

Category: Dome Cameras   Brand: Hanwha Vision
Wisenet QNV-8010R 5 Megapixel Network Camera - Dome

Hanwha SBO-100B1 Junction Box for Bullet Cameras, Black

Category: Junction Boxes   Brand: Hanwha Vision
Hanwha SBO-100B1 Junction Box for Bullet Cameras, Black

Hanwha QNV-8080R Q Series, 5MP WDR IP Dome Camera, 3.2-10mm Motorized Varifocal Lens, IR 30M, IP66, White

Category: Dome Cameras   Brand: Hanwha Vision
Wisenet QNV-8080R 5 Megapixel Network Camera - Dome

Hanwha SBV-140BW/VEX Back Box, Aluminium, White

Category: Camera Mounts   Brand: Hanwha Vision
Image of SBV-140BW

Hanwha SBP-156WMW Wall and Pole Mount Bracket for PTZ Cameras, Indoor & Outdoor Use, White

Category: Camera Mounts   Brand: Hanwha Vision
Wisenet SBP-156WMW Wall Mount for Network Camera - White

Hanwha SBP-302PM Pole Mount Adaptor, Dark Gray

Category: Camera Mounts   Brand: Hanwha Vision
Hanwha SBP-302PM Pole Mount Adaptor, Dark Gray

Hanwha SBP-301HMW2 Mounting Adapter for Select QNV Series Cameras, White

Category: Pendant Caps   Brand: Hanwha Vision
Hanwha SBP-301HMW2 Mounting Adapter for Network Camera - White

Hanwha SBP-300PMW Pole Mount Adapter, Indoor & Outdoor use, White

Category: Camera Mounts   Brand: Hanwha Vision
Hanwha SBP-300PM1 Wisenet Series, Pole Mount Adapter, Indoor & Outdoor use, White

Hanwha SBP-300WM1 Wall Mount Bracket for PTZ Cameras, Indoor & Outdoor use, White

Category: Camera Mounts   Brand: Hanwha Vision
Hanwha SBP-300WM1 Wisenet Series, Wall Mount Bracket for PTZ Cameras, Indoor & Outdoor use, White

Hanwha QNV-6082R1 Q Series, 2MP IP Dome Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, White

Category: Dome Cameras   Brand: Hanwha Vision
Hanwha QNV-6082R1 Wisenet Q Series, IP66 2MP 3.2-10mm Varifocal Lens, IR 30M IP Dome Camera, White

Hanwha ANV-L7012R 4MP IR Outdoor Vandal Dome Camera, 3mm Fixed Lens, 20m IR, IP66 IK10, White

Category: Dome Cameras   Brand: Hanwha Vision
Image of ANV-L7012R

Hanwha SBP-300CMW1/VEX Ceiling Mount, Aluminium, 358mm, White

Category: Camera Mounts   Brand: Hanwha Vision
Image of SBP-300CMW1

Hanwha QNV-6082R Q Series, 2MP WDR IP Dome Camera, 3.2-10mm Varifocal Lens, IR 30M, IP66, White

Category: Dome Cameras   Brand: Hanwha Vision
Image of QNV-6082R

Hanwha ANV-L7082R 4MP IR Outdoor Vandal Dome Camera, 3.3-10.3mm Varifocal Lens, 30m IR, IP66 IK10, White

Category: Dome Cameras   Brand: Hanwha Vision
Image of ANV-L7082R

Hanwha SBP-156KMW Corner Mount Adapter for PTZ Plus Cameras, White

Category: Camera Mounts   Brand: Hanwha Vision
Hanwha SBP-156KMW Corner Mount Adapter for Wisenet PTZ Plus Cameras, White

Hanwha SBP-300PMW2/VEX Pole Mount Adaptor for TNO-7180RLP, Aluminium, White

Category: Camera Mounts   Brand: Hanwha Vision
Image of SBP-300PMW2

Hanwha SBP-160HMW1 Aluminum Core Hanging Mount, Plastic Cap, White

Category: Pendant Caps   Brand: Hanwha Vision
Image of SBP-160HMW1

Hanwha QNV-C8083R/VEX IP Dome 5MP, 3.2-10mm, IR 30m, IP66, IK10

Category: Dome Cameras   Brand: Hanwha Vision
Image of QNV-C8083R

Hanwha SBP-300CMW Pendant Mount for PTZ Cameras, Indoor & Outdoor use, White

Category: Camera Mounts   Brand: Hanwha Vision
Hanwha Techwin SBP-300CMW Ceiling Mount for Surveillance Camera - White

Hanwha QNF-9010 Q Series, 12MP WDR IP Fisheye Camera, 1.08mm Fixed Lens, IP42, White

Category: Panoramic Cameras   Brand: Hanwha Vision
Image of QNF-9010

Hanwha ARN-810S 8-Channel PoE+ NVR, 60 Mbps, 1 HDD

Category: NVRs   Brand: Hanwha Vision
Image of ARN-810S

Hanwha ARN-410S 4-Channel PoE NVR, 40 Mbps, 1 HDD

Category: NVRs   Brand: Hanwha Vision
Image of ARN-410S

Hanwha SBP-300NBW Installation Box for PTZ Cameras, Indoor & Outdoor use, White

Category: Junction Boxes   Brand: Hanwha Vision
Hanwha Techwin SBP-300NBW Mounting box

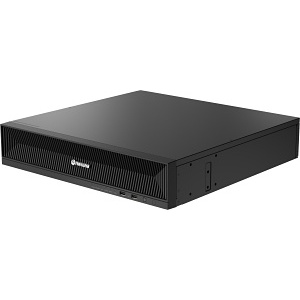

Hanwha XRN-6420B2 64-Channel NVR with 12th Gen. Intel Processor
