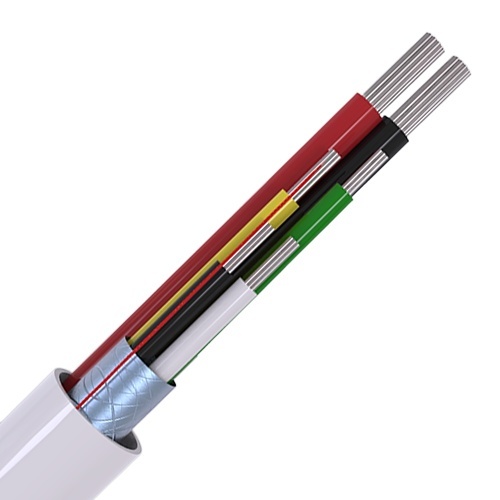

CQR CABS6/WH/100/PD 100M PVC Screened Power Data 6 Core with 4 Core x 0.22 and 2 Core x 0.5 Professional Cable, White

Brand: CQR
ADI #:CABS6/WH/100/PD Model #: CABS6/WH/100/PD  Name: CQR CABS6/WH/100/PD 100M PVC Screened Power Data 6 Core with 4 Core x 0.22 and 2 Core x 0.5 Professional Cable, White
  • 2 Power + 4 Data cores
  • Screened
  • For use where higher than usual current carrying capacity or lower voltage drop is required
CQR CABS6 100M PVC Screened Power Data 6 Core with 4 Core x 0.22 and 2 Core x 0.5 Professional Cable, White

Product Overview

General Information

Power and Data cable is for use where higher than usual current carrying capacity or lower voltage drop is required. Certified and tested to EN50575:2014 - CPR 305/2011 with coloured ripcord for identification of BS4737-3.30:2015 type.

Main Features
  • 2 Power + 4 Data cores
  • Screened
  • For use where higher than usual current carrying capacity or lower voltage drop is required
  • 7?0.182mm2 Tinned Copper for data and 16?0.2mm2 for the two power cores
  • Sheathed in standard PVC
  • Manufactured to BS4737-3.30:2015 Type 2
  • Fully compliant with EN50575:2014 ? CPR 305/2011
  • Coloured rip cord for identification of BS4737-3.30:2015 type
  • 100 mtr drum
Information
Category : Products, Security & Access Control Cables, Stranded Access Cables, Wire & Cable
EAN Code : 5060399122993

Specifications

General Information

ADI Part Number
CABS6/WH/100/PD
Brand Name
CQR
Manufacturer
CQR Fire & Security
Manufacturer Part Number
CABS6/WH/100/PD
Product Line
Professional
Product Name
Power & Data Cable Copper Cable
Product Type
Data Transfer/Power Cable

Technical Information

American Wire Gauge
20AWG
Conductor Material
PVC
CPR Euroclass Rating
Eca

Certifications

RoHS Compliant
Compliant

Physical Characteristics

Cable Length
100 m
Color
White
Insulation Material
PVC
Material
PVC

Miscellaneous

Features
Stranded
