General Information

ADI Part Number

02506-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02506-001

Product Model

Q1806-LE

Product Name

AXIS Q1806-LE

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Frame Rate

90 fps

Minimum Focal Length

4.3mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

32x

Video Formats

H.264, H.265, Motion JPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2880 x 1620

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

1

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/143000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4.3-137mm

Lens Included

Yes

Maximum Focal Length

138 mm

Minimum Aperture

f/1.4

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Black, White

Durability

Impact Resistant

Form Factor

Bullet

Power Description

Input Voltage

10-28V DC, 20-24V AC

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Country of Origin

PL

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Environmentally Friendly

Yes

Features

AI Analytics, Auto Image Stabilizer, Built-in IR LED, Day/Night, Wide Dynamic Range

Impact Protection Rating

IK08, IK10

Indoor/Outdoor

Outdoor

Package Contents

AXIS TQ1903-E Swivel Joint, AXIS TQ1917 Adapter M25x1.5-3/4 NPT, AXIS TQ1924-E Washer Nozzle, Camera, Connector kit, Declaration of Conformity, H4 bit, Installation Guide, Installation manual IM001, Owner authentication key

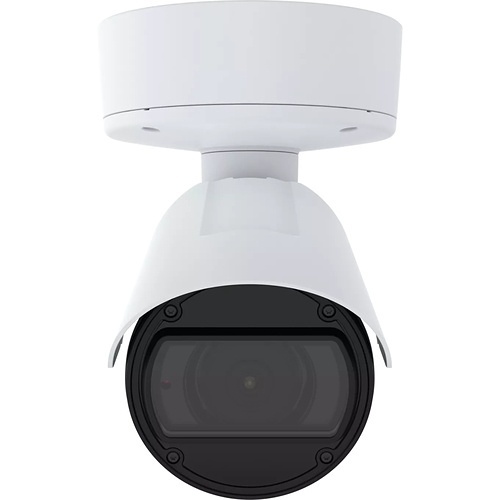

AXIS Q1806-LE 4MP Outdoor Bullet Camera, 32x Zoom, 90fps, Day/Night, IR LEDs
