TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch, 19” Rack Mountable with Brackets Included, 123W

Brand: TRENDnet
ADI #:TPE-TG160H-UK Model #: TPE-TG160H  Name: TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch, 19” Rack Mountable with Brackets Included, 123W
  • 16 x Gigabit PoE+ ports
  • 32Gbps Switching capacity
  • 123W PoE Power budget

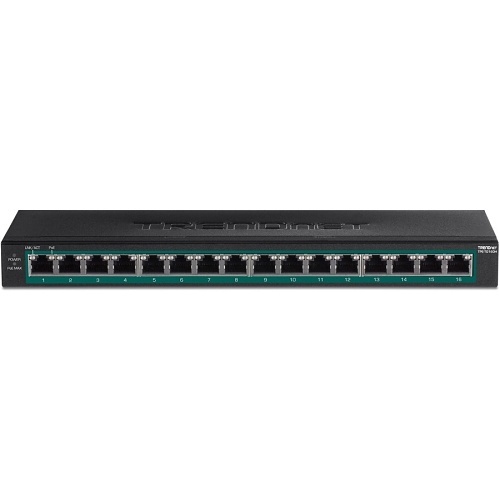

Image of TPE-TG160H-UK

Product Overview

General Information

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables.

Main Features
  • 16 x Gigabit PoE+ ports
  • 32Gbps Switching capacity
  • 123W PoE Power budget
  • IEEE 802.3af/at Compliant
  • Fanless design eliminates operating noise
  • Reduces equipment cost by delivering data and power over existing network cables

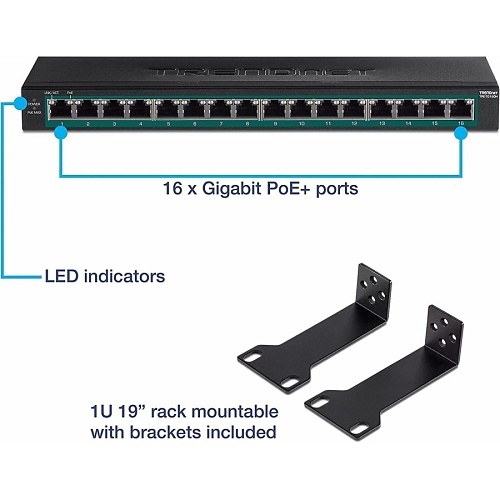

  • 1U 19” Rack mountable with brackets included
  • External power supply
Information
Category : Data Comm & Networking, Hubs, Routers & Switches, Network Switches, Networking Devices, Products, Video Surveillance

Specifications

General Information

ADI Part Number
TPE-TG160H-UK
Brand Name
TRENDnet
Manufacturer
TRENDnet
Manufacturer Part Number
TPE-TG160H
Product Condition
New
Product Model
TPE-TG160H
Product Name
TPE-TG160H Ethernet Switch
Product Type
Ethernet Switch

Technical Information

Media Type Supported
Twisted Pair

Certifications

TAA Compliant
Yes

Interfaces/Ports

Network (RJ-45)
Yes
Port/Expansion Slot Details
16 x Gigabit Ethernet PoE+
Total Number of Network Ports
16

Media & Performance

Network Technology
10/100/1000Base-T

Network & Communication

Ethernet Technology
Gigabit Ethernet
Layer Supported
2

Physical Characteristics

Compatible Rack Unit
1U
Depth
533.4 mm
Form Factor
Rail Mount
Height
101.6 mm
Product Material
Metal
Weight (Approximate)
5.99 kg
Width
355.6 mm

Power Description

PoE Budget
123W
Power Source
PoE+

Warranty

Limited Warranty
Lifetime

Miscellaneous

Environmental Certification
China Environmental United Certification Center
Environmentally Friendly
Yes
Features
Fanless
