Hanwha XNB-9003 X Series, WDR 4K, IP Box Camera, Black

Brand: Hanwha Vision
ADI #:XNB-9003 Model #: XNB-9003/VEX  Name: Hanwha XNB-9003 X Series, WDR 4K, IP Box Camera, Black
  • For remote surveillance needs, this network camera is best suited
  • Color: 0.03 Lux (F1.2, 1/30sec, 30IRE), BW: 0.003 Lux (F1.2, 1/30sec, 30IRE)
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Hanwha XNB-9003 Wisenet X Series, WDR 4K, IP Box Camera, Black

Product Overview

General Information

The XNB-9003 from Samsung is a 4K indoor box AI camera.

Main Features
  • For remote surveillance needs, this network camera is best suited
  • Color: 0.03 Lux (F1.2, 1/30sec, 30IRE), BW: 0.003 Lux (F1.2, 1/30sec, 30IRE)
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Information
Category : Box Cameras, IP Cameras, Products, Video Surveillance
EAN Code : 8801089207746

Specifications

General Information

ADI Part Number
XNB-9003
Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Manufacturer Part Number
XNB-9003
Product Line
Wisenet
Product Model
XNB-9003
Product Name
4K AI Box Camera
Product Series
X series
Product Type
Box Cameras

Technical Information

Connectivity Technology
Wired
Effective Camera Resolution
8MP
HD Recording
Yes
Lens Mount Type
C-Mount, CS-Mount
Maximum Frame Rate
30 fps
Wide Dynamic Range
Yes

Certifications

RoHS Compliant
Compliant
TAA Compliant
No

Display & Graphics

Maximum Video Resolution
3840 x 2160

Environmental Conditions

Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
95%

Exposure

Longest Shutter Speed
2 Second
Minimum Illumination
0.003 lux
Shortest Shutter Speed
1/12000 Second

Interfaces/Ports

Network (RJ-45)
Yes

Lens

Lens Included
No

Physical Characteristics

Color
Black
Color Family
Black
Depth
165 mm
Form Factor
Box Mount
Height
67 mm
Weight (Approximate)
880 g
Width
81 mm

Power Description

Input Voltage
12V DC

Storage

Recording Formats
4K
Storage Type
Memory Card

Video

Analog Video Signal Format
CVBS

Miscellaneous

Features
Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor
Indoor

Similar Products

AXIS P1385-BE 2MP Outdoor Day/Night Box Camera, No Lens, White

Category: Box Cameras   Brand: AXIS Communications
Image of 02900-001

AXIS P1388-LE Outdoor Day/Night Box Camera, 3.9-10mm Varifocal Lens, White

Category: Box Cameras   Brand: AXIS Communications
Image of 02738-001

Hanwha PNB-A9001 P Series, WDR 4K, IP Box Camera, Black

Category: Box Cameras   Brand: Hanwha Vision
Wisenet PNB-A9001 8 Megapixel Network Camera - Box

Hanwha XNZ-L6320A X Series, WDR 2MP 4.44-142.6mm Varifocal Lens, 32 x Optical Zoom IP Box Camera, Black

Category: Box Cameras   Brand: Hanwha Vision
Hanwha XNZ-L6320A Wisenet X Series, WDR 2MP 4.44-142.6mm Varifocal Lens, 32 x Optical Zoom IP Box Camera, Black

AXIS P1385-E Outdoor Day/Night Box Camera, 2.8-13mm Varifocal Lens, White

Category: Box Cameras   Brand: AXIS Communications
Image of 02734-001

AXIS M1075-L M10 Series, Zipstream IP Box Camera, 3.6mm Fixed Lens, IR 18M, White

Category: Box Cameras   Brand: Axis Communications
Image of 02350-001

AXIS Q1615-LE Mk III Q16 Series Fixed Box IP Camera with Analytics with Deep Learning, 2.8-8.5 mm Lens

Category: Box Cameras   Brand: AXIS Communications
AXIS Q1615-LE Mk III Q16 Series Fixed Box IP Camera with Analytics with Deep Learning, 2.8-8.5 mm Lens

AXIS Q1656-LE Q16 Series, 4MP Outdoor Fixed Box IP Camera with Built-in Wiper, 3.9-10mm Varifocal Lens(Replaces Q1647-LE)

Category: Box Cameras   Brand: AXIS Communications
AXIS Q1656-LE Q16 Series 4MP Outdoor Fixed Box IP Camera with Built-in Wiper, 3.9-10mm Varifocal Lens (Replaces Q1647-LE)

AXIS M1137 Mk II M11 Series, 5MP IP Box Camera, 2.8-13mm Varifocal Lens, White

Category: Box Cameras   Brand: AXIS Communications
AXIS M1137 M11 Series, WDR 5MP 2.8-13mm Varifocal Lens IP Box Camera,White

AXIS M1135-E Mk II M11 Series, 2MP Outdoor IP Box Camera, 3-10.5mm Varifocal Lens (Replaces AXIS M1135-E)

Category: Box Cameras   Brand: AXIS Communications
AXIS M1135-E Mk II M11 Series 2MP Outdoor-Ready WDR IP Box Camera, 3-10.5mm Varifocal Lens (Replaces AXIS M1135-E)

AXIS VB-S910F Canon 2.1MP HDTV 1080p Indoor Compact Fixed Camera, 3.5x Optical Zoom Lens

Category: Box Cameras   Brand: AXIS Communications
AXIS VB-S910F Canon 2.1MP HDTV 1080p Indoor Compact Fixed Camera, 3.5x Optical Zoom Lens

Avigilon Unity 16C-H5PRO-B H5 Pro Series, WDR IP66 16MP, IP Box Camera, Black

Category: Box Cameras   Brand: Avigilon Unity
Image of 16C-H5PRO-B

Avigilon Unity 26C-H5PRO-B H5 Series 26MP Pro Box IP Camera

Category: Box Cameras   Brand: Avigilon Unity
Avigilon 26C-H5PRO-B H5 Series 26MP Pro Box IP Camera

Avigilon Unity 3.0C-HD-LP-B1 3MP 4.7-84.6mm Varifocal Lens, IP Box Camera, White

Category: Box Cameras   Brand: Avigilon Unity
Image of 3.0C-HD-LP-B1

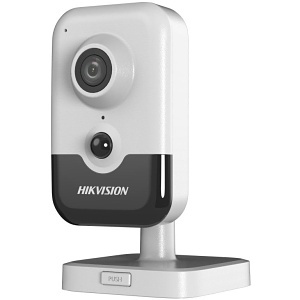

Hikvision DS-2CD2443G2-I(2.8mm) IP Box 4MP 2.8mm Cube PIR 2 Way Audio
