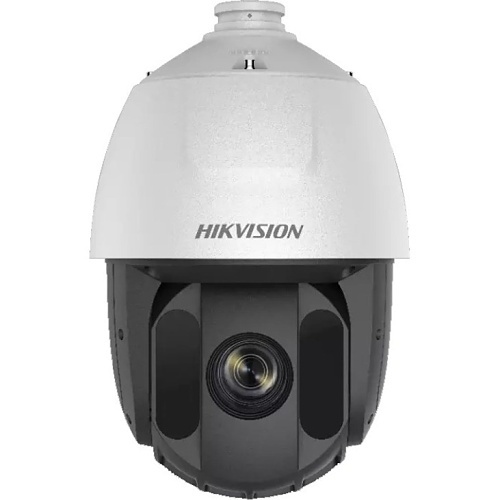

Hikvision DS-2AE5225TI-A Pro Series DarkFighter IP66 2MP IR 150M 25 x Optical Zoom HDoC Dome Camera, 4.8-120mm Motorized Varifocal Lens, White

Brand: Hikvision
ADI #:301205352 Model #: DS-2AE5225TI-A(E)  Name: Hikvision DS-2AE5225TI-A Pro Series DarkFighter IP66 2MP IR 150M 25 x Optical Zoom HDoC Dome Camera, 4.8-120mm Motorized Varifocal Lens, White
  • High quality imaging with 2MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology

Environmental Conditions

Maximum Operating Temperature
65°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%

Exposure

Longest Shutter Speed
1/1 Second
Minimum Illumination
0.001 lux
Shortest Shutter Speed
1/10000 Second

Lens

Focal Length
4.8-120 mm
Lens Included
Yes
Maximum Focal Length
120 mm
Minimum Aperture
f/3.5

Physical Characteristics

Color
White
Durability
Dust Resistant, Water Resistant
Form Factor
PTZ
Weight (Approximate)
3.30 kg

Power Description

Input Voltage
24V AC
Power Source
DC

Product Information

Diameter
208 mm
Mount Type
Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats
Full HD

Video

Analog Video Signal Format
AHD, CVBS, CVI, HDoC, TVI

Miscellaneous

Environmental Certification
RoHS
Features
3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Electronic Image Stabilization, Highlight Compensation (HLC), Privacy Masking, PTZ, Wide Dynamic Range
Indoor/Outdoor
Outdoor
Package Contents
  • 5-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
  • Wall Mount
